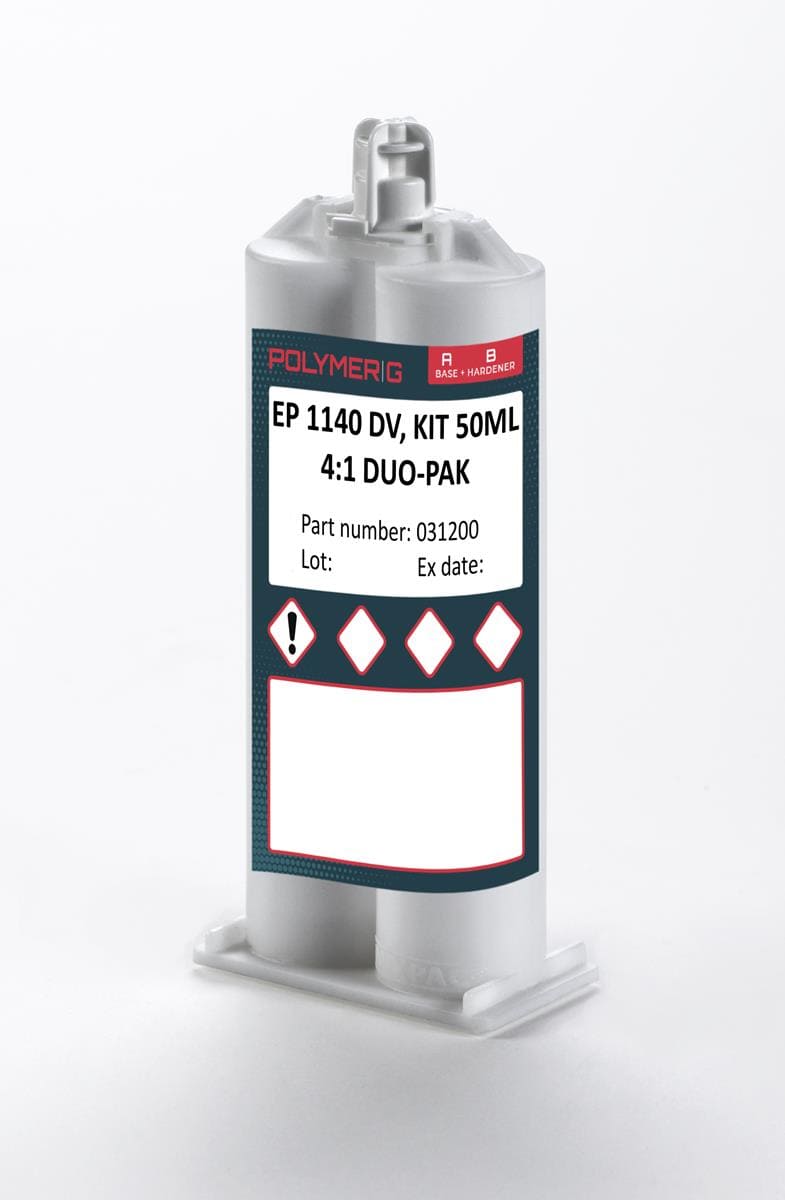

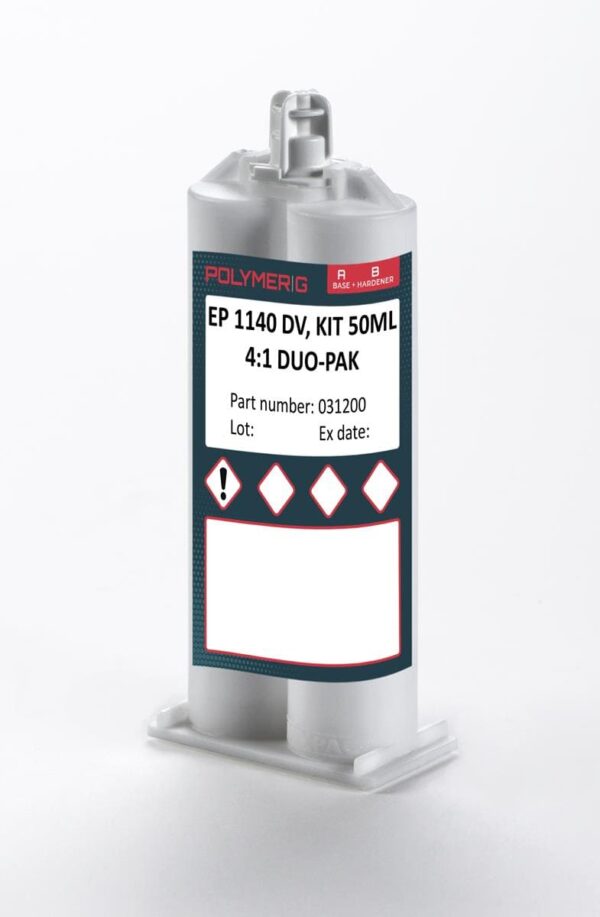

EP 1140 DV
High Thermal Conductive Epoxy Adhesive
EP 1140 DV, a two-component, thermal conductive epoxy adhesive, offers excellent electrical insulation characteristics together with low thermal expansion and high chemical resistance. EP 1140 DV demonstrates high adhesion to metals and ceramics.
| SKU | Material | Base | Hardener | Mix Viscosity | Mix Ratio By Weight | Shore 7 Days | Service Temp | Color | Gel Time Min/25C | Purpose | Volume | UL 94 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EP1140DV | Epoxy Adhesive | EP 1140 DV | EPC 1140 DV | 4:1 | D87 | -40 TO 120 | Black | 60-80 | Bonding,Sealing | 50ML, 0.5L |
Features & Benefits:
- High thermal conductivity
- Low thermal expansion
- High electrical insulation properties
- High chemical resistance
- Room temperature cure
- Long pot life
Applications:
Bonding and sealing.
Download full specs
