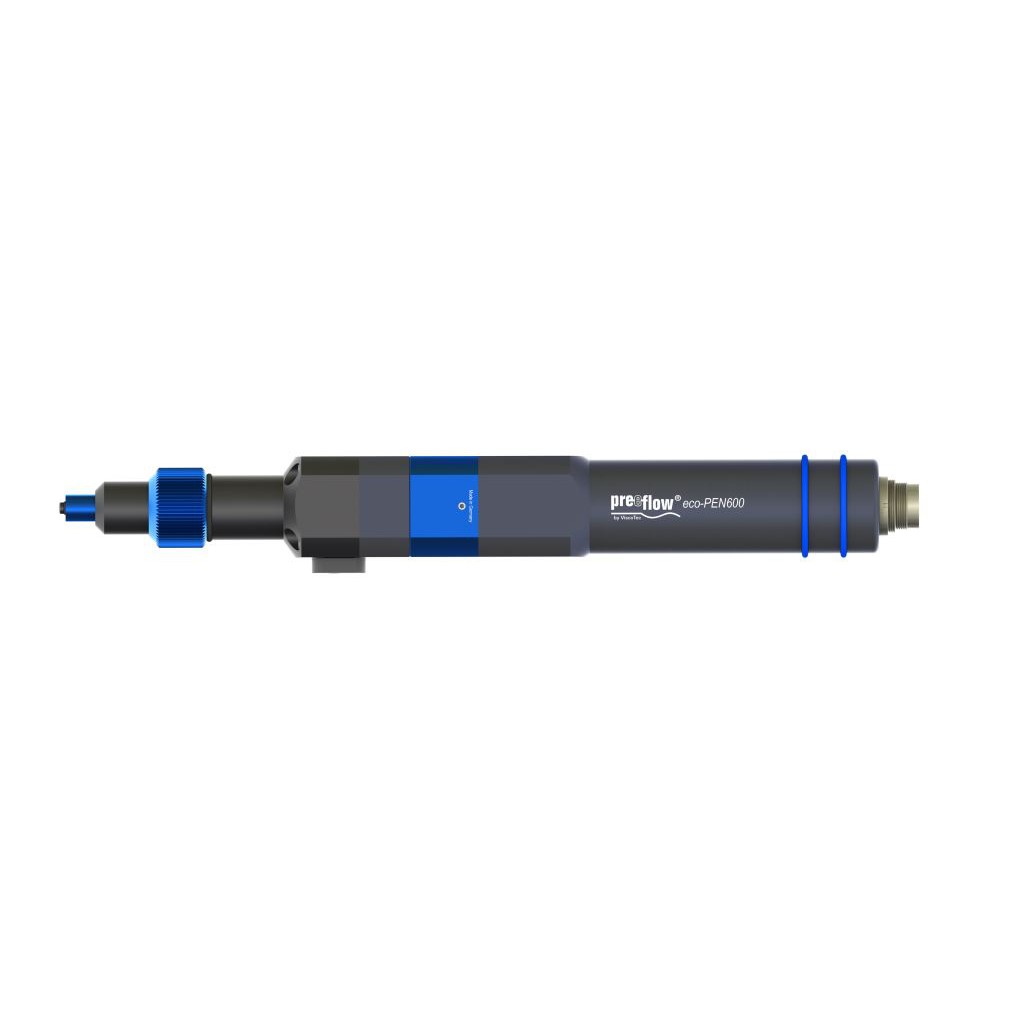

ECO-PEN 600
Small quantities dispensing system for 1 part pasty adhesive up to 16 gr / min
The eco-PEN is 600 an advanced volumetric dispensing system which is capable of dispensing micro quantities of one-component fluids or pastes where accuracy and repeatability cannot be compromised. The proven endless piston technology (screw pump) by Viscotec assures that watery to pasty liquids are dispensed at the required quantity and with no pulsation.
| Art. No. | 20048 |
| Measurements | length 274 mm, Ø 40 mm |
| Weight | 650 g |
| Operating pressure (5) | 0 – 6 bar |
| Max. dispensing pressure (1) (4) | 20 bar |
| Viscosity | watery to pasty |
| Volume flow (3) | 1.4 – 16.0 ml/min |
| Min. dispensing quantity | 0.015 ml |
| Dispensing accuracy (2) | ± 1 % |
| Stator material | VisChem (optional VisLas) |
| Material inlet | G 1/4“ DIN/ISO 228 |
| Material outlet | Luer-Lock (patented) |
| Wetted parts | POM / stainless steel / VisChem / HD-PE (optional VisLas) |
| Operating conditions | 10–40°C |
| Repeat accuracy | >99% |
