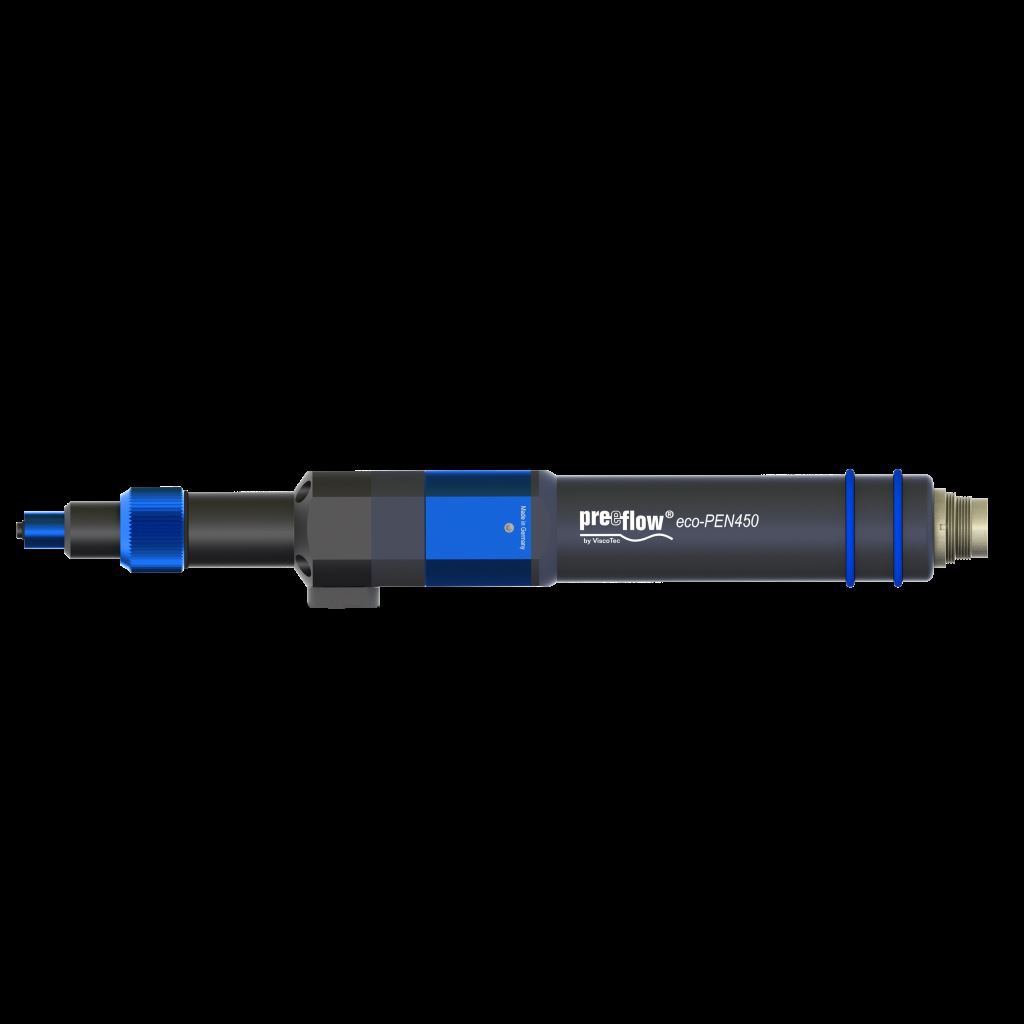

ECO-PEN 450
Small quantities dispensing system for 1 part pasty adhesive up to 6 gr / min

Viscotec

The eco-PEN 450 is a superbly reliable volumetric dispensing system which is able to apply the smallest amounts of single-component fluids or pastes – for high-precision dispensing technology. Based on the proven endless piston technique (screw pump), watery to pasty liquids are dispensed in perfection. Using the eco-PEN 450 provides a clean, process-reliable dosage is guaranteed regardless of any viscosity changes due to fluctuations in temperature of specific gravity

SKU: 729000020092 Category: Components: Manufacturer:
Art. No. 20092
Measurements length 228 mm, Ø 33 mm
Weight 300 g
Operating pressure (5) 0 – 6 bar
Max. dispensing pressure (1) (4) 20 bar
Viscosity watery to pasty
Volume flow (3) 0.5 – 6.0 ml/min
Min. dispensing quantity 0.004 ml
Dispensing accuracy (2) ± 1 %
Stator material VisChem (optional VisLas)
Material inlet G 1/8“
DIN/ISO 228
Material outlet Luer-Lock (patented)
Wetted parts POM / stainless steel / VisChem / HD-PE (optional VisLas)
Operating conditions 10–40°C
Repeat accuracy >99%
