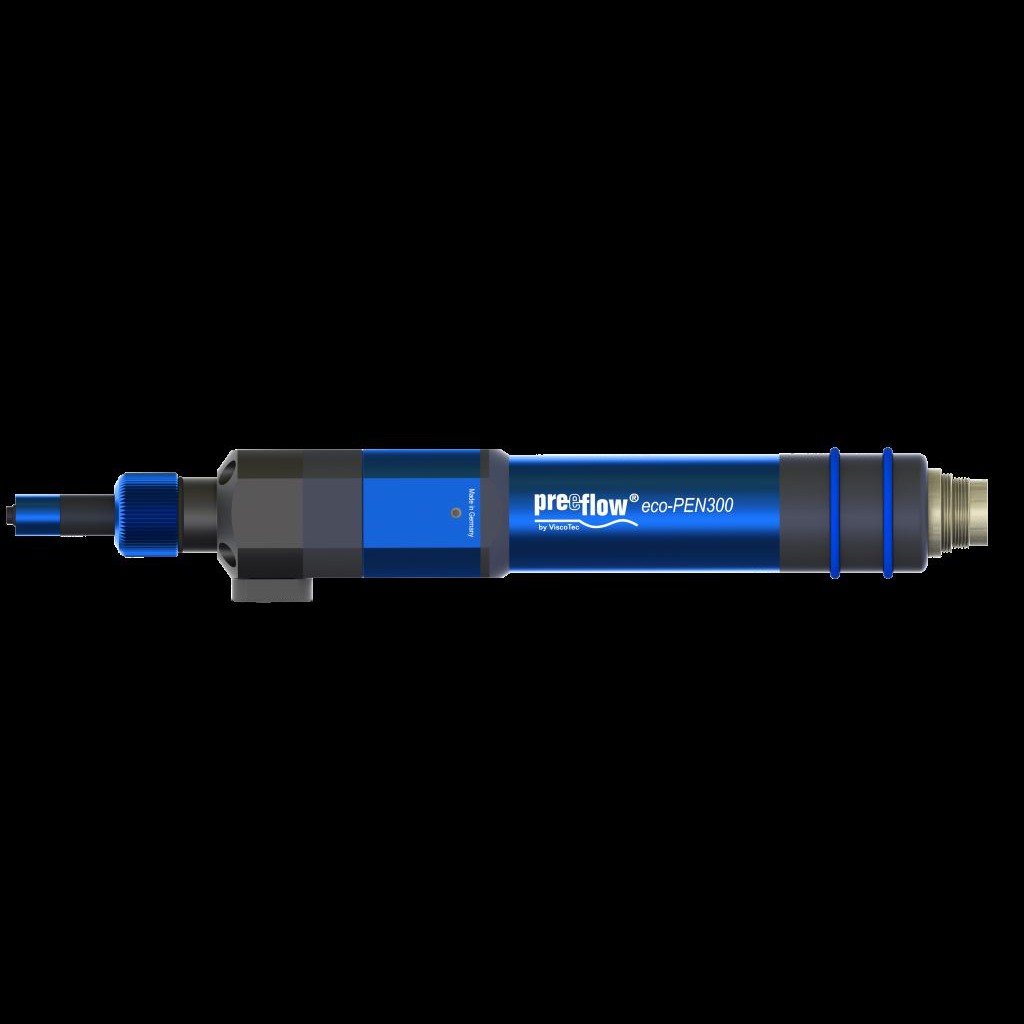

ECO-PEN 300
Small quantities dispensing system for 1 part pasty adhesive up to 2 gr / min
The ECOPEN 300 is 1-component dispenser which is perfectly suited for fluid transport of low to high viscosity materials, mainly adhesives, oil and chemicals.
ECO-PEN 300 Small quantities dispensing system for 1 part pasty adhesive – Technology:
A single component volumetric dispensing system that applies the smallest amounts starting from 1 microliter (µl).
| Art. No. | 20505 |
| Measurements | length 216 mm, Ø 33 mm |
| Weight | 280 g |
| Operating pressure (5) | 0 – 6 bar |
| Max. dispensing pressure (1) (4) | 20 bar |
| Viscosity | watery to pasty |
| Volume flow (3) | 0.12 – 1.48 ml/min |
| Min. dispensing quantity | 0.001 ml |
| Dispensing accuracy (2) | ± 1 % |
| Stator material | VisChem |
| Material inlet | G 1/8“ DIN/ISO 228 |
| Material outlet | Luer-Lock (patented) |
| Wetted parts | POM / stainless steel / VisChem / HD-PE |
| Operating conditions | 10–40°C |
| Repeat accuracy | >99% |
