ECO-DUO 600
Small quantities dispensing system for 2 part adhesives up to 32 gr / min

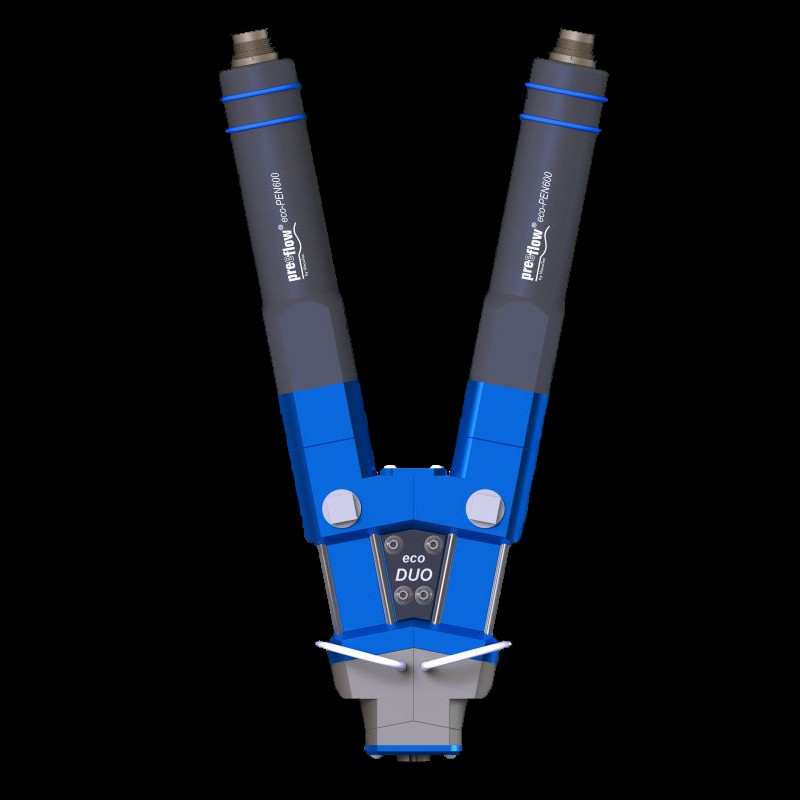

The preeflow® eco-DUO600 is a rotating progressive cavity 2K dispenser that dose small quantities in an outstanding accuracy while keeping medium properties as originally obtained.
ECO-DUO 600 Small quantities dispensing system for 2 part adhesives – Technology:
The dosing technology also conveys the paste backwards, allowing a clean, servo controlled fluid dosing to perfection without any dripping.
| Art. No. | 21175 |
| Measurements | 301 mm x 163 mm |
| Weight | 11880 g |
| Operating pressure (5) | 0 – 20 bar |
| Max. dispensing pressure (1) (4) | 40 bar |
| Viscosity | watery to pasty |
| Volume flow (3) | 0.6 – 32.0 ml/min (at 1:1) |
| Min. dispensing quantity | 0.030 ml |
| Dispensing accuracy (2) | ± 1 % |
| Mix ratio | 1:1 – 10:1 |
| Stator material | VisChem (optional VisLas) |
| Material inlet | G 1/4“ DIN/ISO 228 |
| Material outlet | static mixer, bayonet lock |
| Wetted parts | Aluminium, anodized / POM / stainless steel / VisChem / HD-PE (optional VisLas) |
| Operating conditions | 10–40°C |
| Repeat accuracy | >99% |
